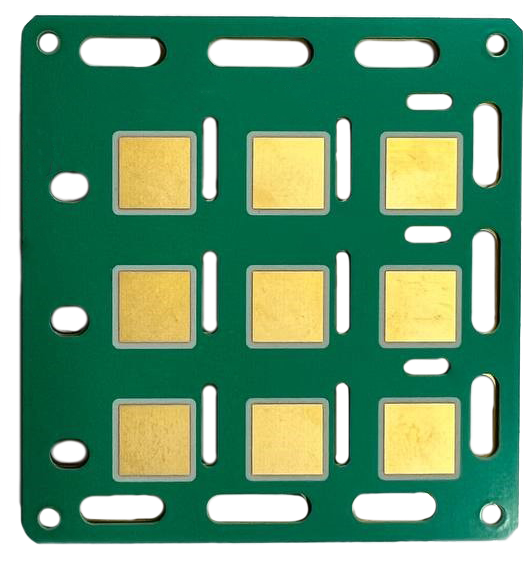

High-Speed X-Band Channel Antenna
Product Details:
• High-Speed Data Dump: Engineered for high-speed data transmission
within the
X-band
frequency range.
• Passive Antenna: A passive antenna design that operates without the
need for
external
power.

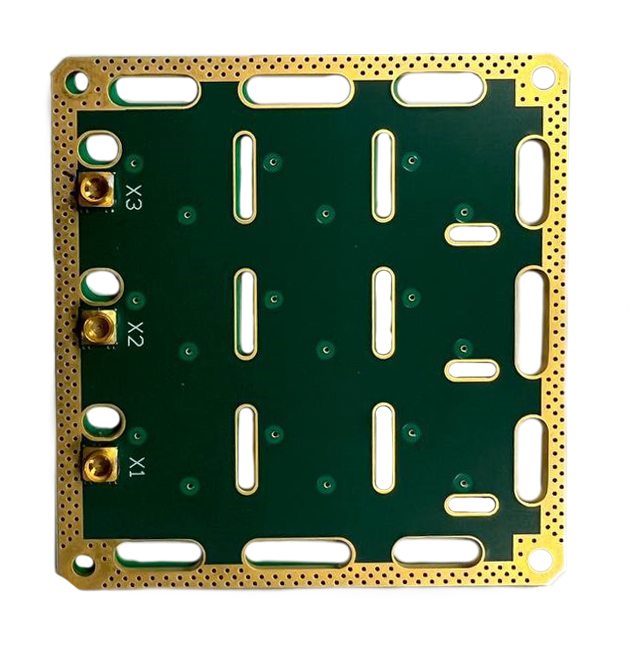

• Versatile Connector Configuration: Features three high-frequency
connectors,
allowing for
both in-phase radiation from each channel and phased operation on individual
channels
(current version supports in-phase use).
• Directional Emission: Emits signals with a directional pattern for
optimized
communication.
Key Technical Features:
1. Frequency Range: Designed for X-band frequencies, ranging from 7.9
to 8.4
GHz.
2. Gain Range: Offers a gain range from 6 to 11 dBc for efficient
signal
transmission.
3. Versatile Connector Type: Equipped with SMP connectors to support
flexible channel
configurations.
4. Polarization: Circular polarization for enhanced signal
reliability.
5. Lightweight Design: Weighing only 0.031 kg, ensuring minimal
impact on
payload mass.
Technical Specifications:
• Frequency Range: 7.9 - 8.4 GHz
• Gain Range: 6 - 11 dBi
• VSWR: Less than 2
• Polarization: Circular
• Connector Type: SMP
• Dimensions (H×W×L), mm: 12×75×79
• Weight, kg: 0.031
The Amungo Space High-Speed X-Band Channel Antenna offers a reliable and
efficient solution for
high-speed data communication in space missions, ensuring optimized
performance within the Xband frequency range.
